86C-2

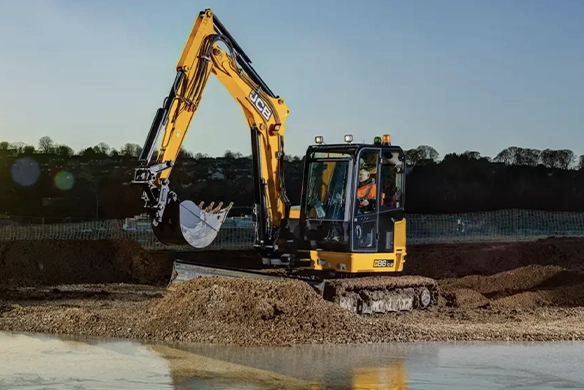

The JCB 86C-2 is a conventional tailswing compact excavator built to deliver 8.5-ton performance with advanced control, comfort and durability. Powered by a 49kW (66 hp) JCB by Kohler engine, this machine meets Tier 4 Final emissions standards without needing a DPF, reducing complexity and maintenance. The 86C-2 is engineered with a fully welded X-frame undercarriage, all-steel bodywork and smooth electro-hydraulic controls for precise, responsive operation. Its conventional tailswing design offers excellent lifting capacity and digging stability – ideal for heavy-duty trenching, utility installation and site prep work. Inside the cab, operators benefit from a quiet, climate-controlled space with intuitive controls and outstanding visibility.Conventional tailswing design
Provides enhanced lifting and stability in tough digging applications
49 kW JCB by Kohler engine
Delivers strong performance with reduced fuel use and no DPF
Electro-hydraulic control system
Offers customizable, smooth operation to match operator preferences
Premium operator cab
Quiet, comfortable and equipped with ergonomic controls and HVAC
Specifications
| Operating Weight | Engine | Max Dig Depth | Max Reach at Ground Level | Tailswing | Bucket Breakout Force | Hydraulic Flow | Travel Speed | Cab | Undercarriage |
|---|---|---|---|---|---|---|---|---|---|
| 8,300 kg | 49 kW JCB by Kohler (66 hp) | 4.7 m | 7.32 m | Conventional | 58.2 kN | 120 L/min | Up to 5 km/h | Enclosed, pressurized with HVAC | X-frame with steel tracks and dozer blade |
