85Z-2

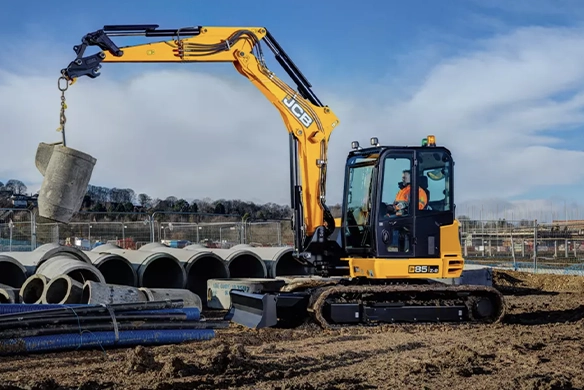

The JCB 85Z-2 is a zero tailswing compact excavator that blends 8.5-ton performance with next-generation efficiency, control and comfort. Designed to meet the latest emissions standards without sacrificing digging power, the 85Z-2 is powered by a 49 kW (66 hp) JCB by Kohler engine and features a durable steel body, robust X-frame undercarriage and advanced hydraulics. The zero tailswing design provides confident operation in confined spaces, while the intuitive electro-hydraulic controls offer precise, customizable performance. Inside the spacious, fully enclosed cab, operators benefit from ergonomic controls, climate control and excellent all-around visibility. It’s a versatile machine ready for trenching, lifting and loading on today’s busiest jobsites.Zero tailswing for confident, compact operation

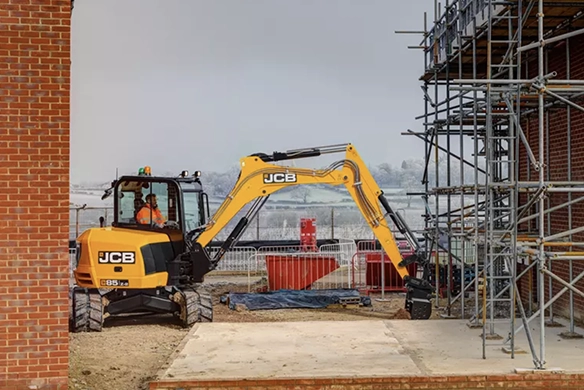

Ideal for urban, roadside and close-quarter digging
Electro-hydraulic control system
Delivers smooth, adjustable operation tailored to operator preference
Heavy-duty X-frame undercarriage
Increases strength, stability and service access in rugged conditions
Comfort-focused cab
Spacious, climate-controlled environment with low noise levels and clear visibility
Specifications
| Operating Weight | Engine | Max Dig Depth | Max Reach at Ground Level | Tailswing | Bucket Breakout Force | Hydraulic Flow | Travel Speed | Cab | Undercarriage |
|---|---|---|---|---|---|---|---|---|---|
| 8,300 kg | 49 kW JCB by Kohler (66 hp) – Tier 4 Final | 4.7 m | 7.32 m | Zero | 58.2 kN | 120 L/min | Up to 5 km/h | Enclosed, pressurized with HVAC and ergonomic controls | Heavy-duty steel with dozer blade |
