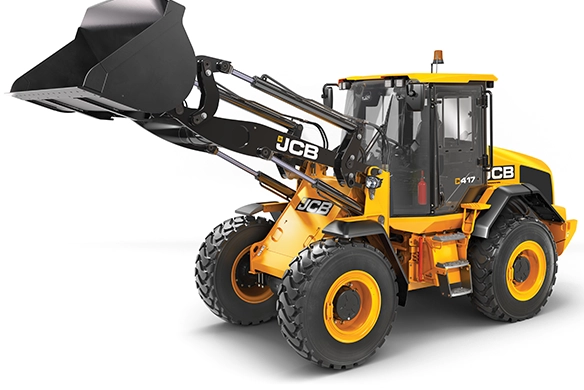

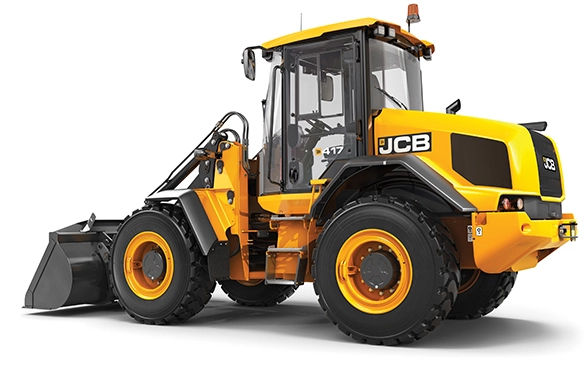

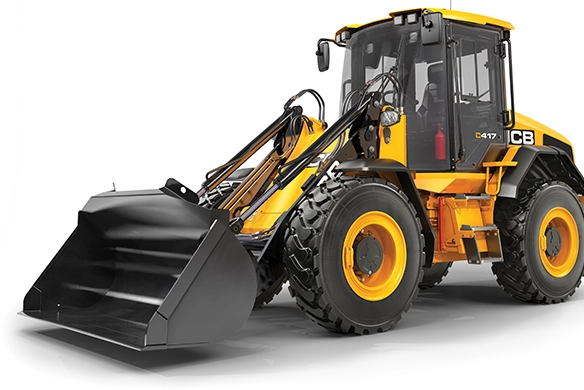

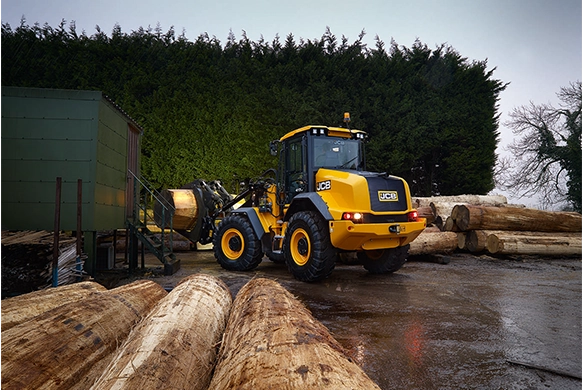

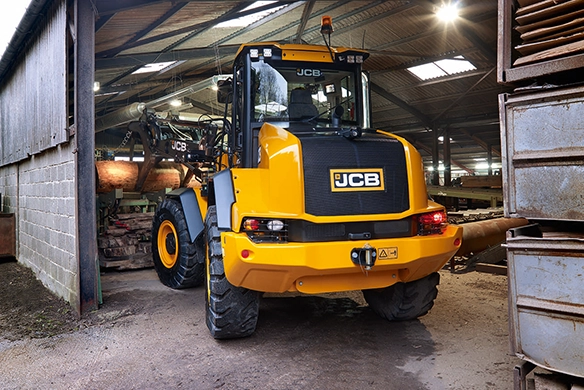

417 Agri
The JCB 417 Agri is a versatile, high-performance agricultural wheel loader engineered to move more material, faster. With a 93 kW(125 hp) JCB EcoMAX engine and a 4-speed powershift transmission, the 417 Agri delivers excellent torque and fuel efficiency without the need for a DPF. Designed with Z-bar loader geometry and optional high-lift arms, this machine is ideal for loading silage, manure, grain or bales with speed and confidence. Its Command Plus cab provides a premium operator environment with quiet operation, intuitive controls and all-around visibility. Durable, productive and easy to maintain, the 417 Agri is a smart solution for high-output farm operations across Canada.93 kW JCB EcoMAX engine
Delivers strong torque and responsive power with no DPF
Z-bar linkage with high-lift option
Maximizes breakout force and reach for quick loading and stacking
Command Plus cab
Spacious and operator-focused for long shifts in all weather
High-flow hydraulics
Improve cycle times and attachment performance for a variety of ag tasks
Specifications
| Engine | Operating Weight | Bucket Capacity | Breakout Force | Lift Height | Transmission | Top Speed | Hydraulic Flow | Cab | Turning Radius (outside) |
|---|---|---|---|---|---|---|---|---|---|
| 93 kW JCB EcoMAX (125 hp) | Approx. 9,330 kg | 1.5–1.8 m³ | Over 88.1 kN | Approx. 3.73 m (standard hinge pin) | 4-speed powershift | Up to 40 km/h | Up to 135 L/min | Command Plus with HVAC, air suspension seat | Approx. 5.4 m |
