35Z-1

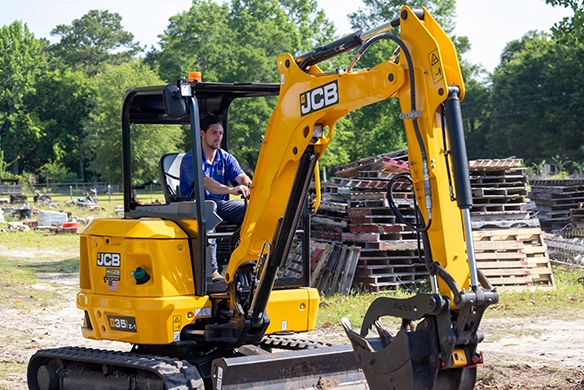

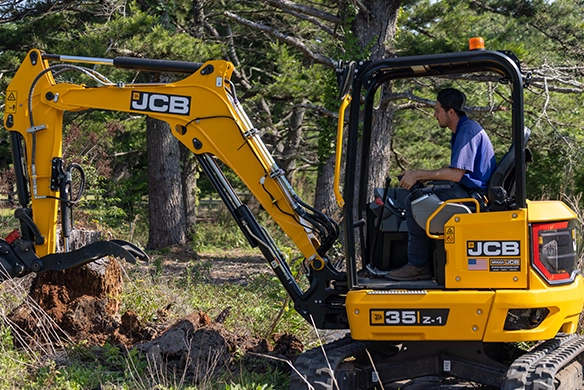

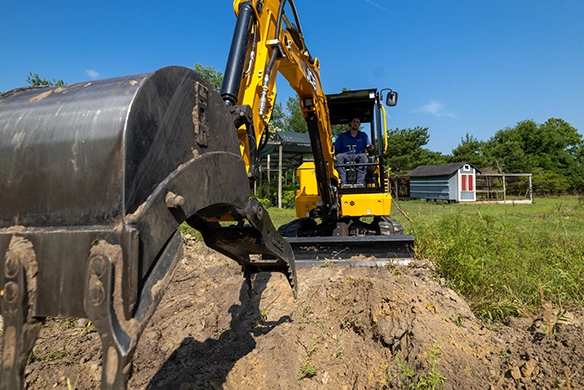

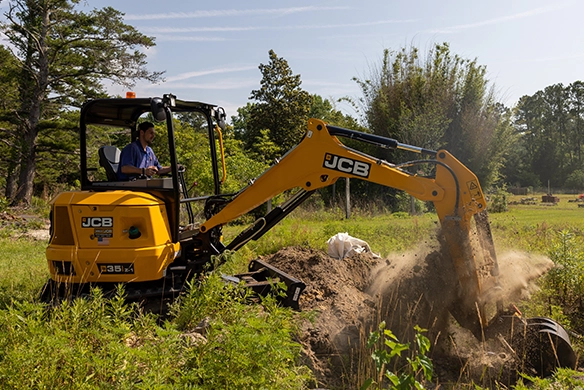

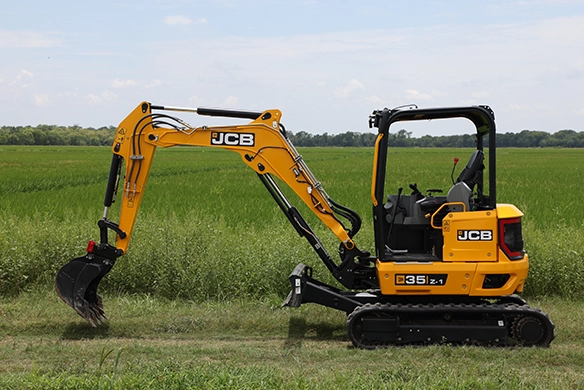

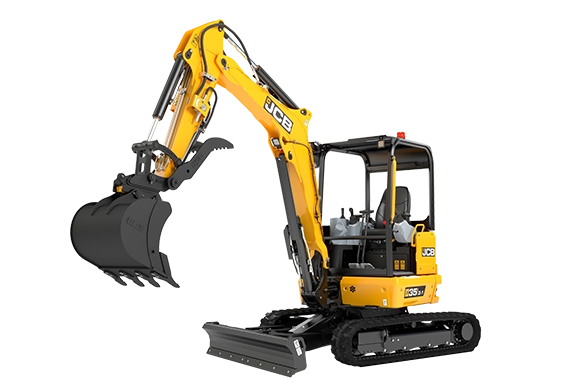

The JCB 35Z-1 is a powerful, zero tailswing mini excavator designed for tough digging, utility work and tight-space applications. Weighing in at 3,724 kg, this 3.5-ton class machine is built to deliver impressive digging depth, breakout force and lifting capability while maximizing maneuverability. Its zero tailswing design allows operators to work flush against walls, trenches or buildings with complete confidence. Built with 100% steel body panels, a heavy-duty undercarriage and improved hose protection, the 35Z-1 is made to endure demanding conditions. Inside the cab, operators enjoy smooth hydraulics, enhanced comfort and intuitive controls that make long days more productive and less fatiguing.Zero tailswing for maximum jobsite flexibility
Work close to structures and tight boundaries without risk of rear overhang
Durable steel construction
Built to withstand real-world jobsite abuse with long-lasting reliability
Advanced hydraulic system
Smooth, precise operation for trenching, lifting and grading tasks
Spacious, modern cab
Offers excellent visibility, ergonomic controls and climate control options
Specifications
| Operating Weight | Engine | Max Dig Depth | Max Reach at Ground Level | Tailswing | Bucket Breakout Force | Hydraulic Flow | Travel Speed | Cab | Undercarriage |
|---|---|---|---|---|---|---|---|---|---|
| 3,724 kg | 18.4 kW Perkins (24.7 hp | 3.12 m | 5.21 m | Zero | 30.7 kN | 65.9 L/min | Up to 4.7 km/h | Enclosed ROPS with HVAC | Heavy-duty with dozer blade |
